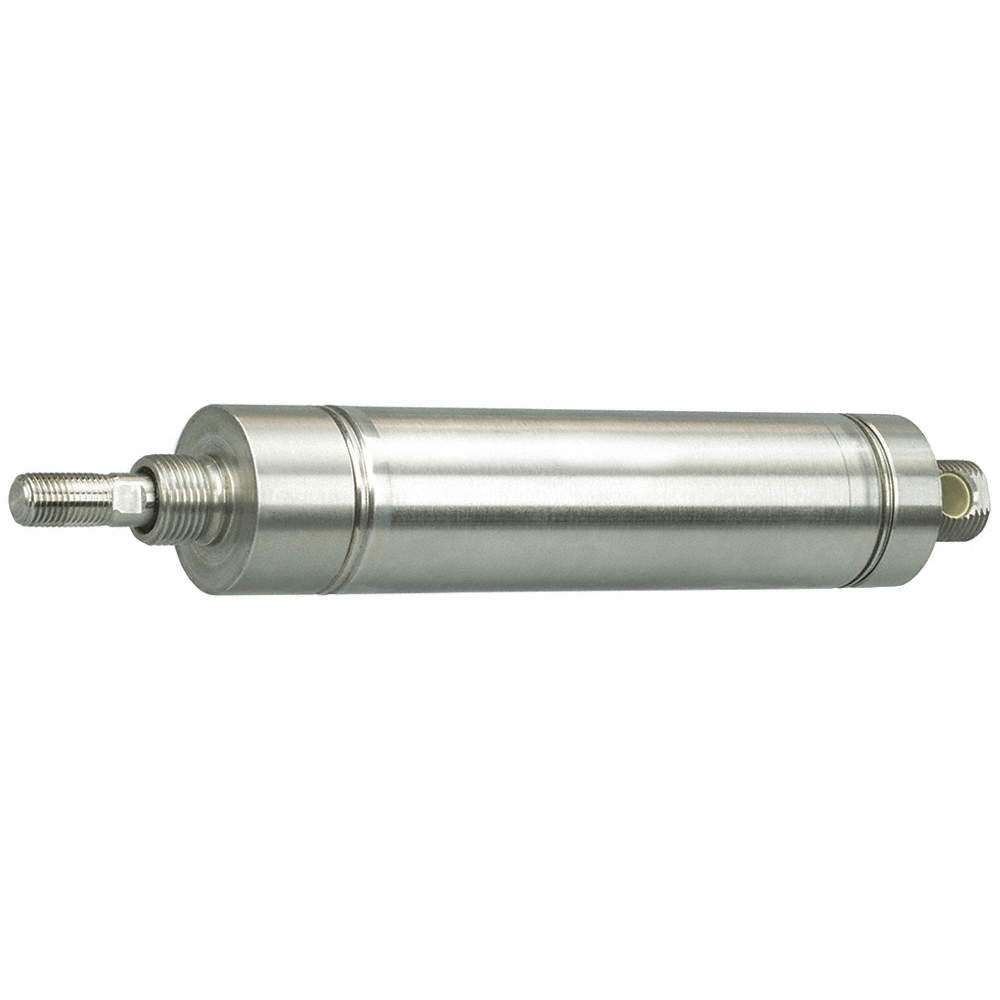

These air cylinders are used on AFC air make-up and re-circulation damper actuators.
- Double acting pneumatic cylinder
- 3/4 in. bore diameter
- 3 in. stroke, 1/8 in. NPT, 250 psi max operating pressure
- -10 °F min- 165 °F max operating temperature.
These air cylinders are used on AFC air make-up and re-circulation damper actuators.
